FarmCube Ultra

Compact, All-in-One GS-AERO Ponics T-CEA System

COMPACT GROWING

All-In-One T-CEA System

FarmCube Ultra H2.png

An 11.9m² canopy area with up to 2,048 planting sites, perfect  for educational instituitions, on-site medical pharmacies, biotech research, and farm-besides-table applications

FarmCube Ultra H3.png

Equipped with the GS-AERO Ponics system, delivering precise nutrient droplets of 20-60μm directly to roots, optimising growth and yield.


Aeroponics

Cultivation


Customised

Lighting Strategy


Fully Integrated

HVAC


All-In-One

Solution


Advanced FIC

System


Multi-Platform

SaaS Control

ADVANCED DIGITAL CLIMATE

Air Dynamics

Precise climate control for temperature, humidity, and CO2, with warm/cool air options and a humidity range of 45%-98% at 25°C.

FarmCube Ultra H4.png

PHOTOIONISATION & STERILISATION

Purified Air

Prevents mold and pests, protecting crops and promoting plant health with sterilisation at 10^11 per m² for a clean, safe environment.

FarmCube Ultra H5.png

AUTO-DOSING & IRRIGATION

Auomated FIC

Enables flexible nutrient management with 4-tier, 4-channel dosing and real-time pH and EC adjustments, providing precise, programmable control across growth stages.

FarmCube Ultra H6(1).png

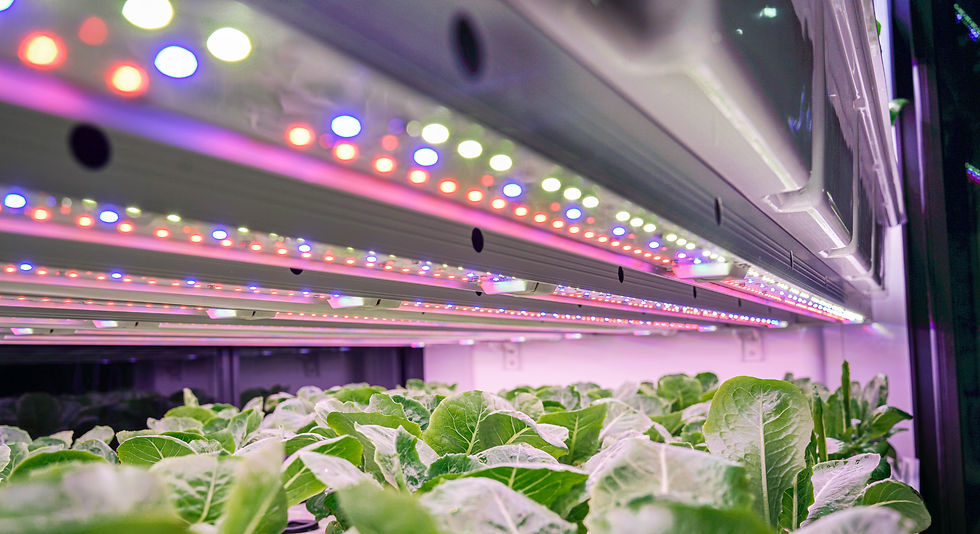

ADVANCED LIGHTING INNOVATIONS

Lighting

Ultra H7 Lighting
Lighting-Dedicated Tiers.png
Lighting-Programmable Recipes.png
Lighting-programmable Timer.png
Lighting-Dimmable Illumination.png
Banner 02.jpg

12

Harvest

Per Year

36

Days

Per Cycle

2,048

Planting

Cells

230 g

Ave. Weight Per Head

Lettuce

1,143 kg

Annum Yield

Lettuce

11.9 m²

Canopy

Area

TECHNICAL PARAMETRES

FarmCube Ultra Technical Parametres

GENERAL

1. Equipment Area Dimensions :   3,430 x 1,350 x 2,000 mm

2. Shipping Dimensions :

  • 2,820 x 1,480 x 2,100 mm (growing unit)

  • 1,480 x 830 x 2,100 mm (control unit)

3. Door Outswing : 614 mm

4. Growing Area Dimensions : 2,440 x 1,220 mm x 4 tiers

5. Growing Height Per Tier : 462 mm /259 mm (below LED bar)

6. Equipment Weight : Approx. 800 kg



ELECTRICITY

1. Input Power/Frequency : 4,240 W (peak)

2. Input Current/Voltage : 20 A /220-240 V 50 Hz

3. Consumption Per Day : 30 kW

TEMPERATURE

1. Operating Environment Temperature Range : 0°C - 30°C

2. Temperature Control Range @25°C : 10°C - 28°C



AIR

1. Photoionization Sterilization Density : 10^11 per m^2

2. Air Circulation Capacity in Planting Area : 30 times/hour

3. CO2 Control Range : 400 - 3,000PPM

4. Humidity Control Range @25°C : 45% - 99%

5. Humidification Capacity : 134 liters/day



WATER

1. Internal Air Exchange Capacity : 2 times/minute

2. Water Tank Capacity : 150 liters

3. Water Tank Capacity : 150 liters
