FarmCube Nano
Smart, Compact Growing - 128 Planting Sites in Just 4.0m².
Perfect for Homes, Restaurants, & Educational Labs
SMALL-SCALE PRECISION GROWING
Compact Design
With a 4.0m² canopy area and up to 128 planting sites for leafy greens, FarmCube Nano transforms even the smallest spaces into highly productive farming zones. Featuring closed-loop irrigation, it delivers nutrient-rich produce with ease—ideal for home growers, dining establishments, or educational labs.
CONTROL AT YOUR FINGERTIPS
Smart Touchscreen
The 7-inch full-colour touchscreen provides seamless monitoring and control of growth settings. Easily adjust lighting period and intensity with dimmable LED panels, delivering a full spectrum of light (380–730nm) to optimise crop growth for leafy greens, herbs, and microgreens.
FARM-FRESH PRODUCE
Cultivated Collection
Supports over 20 varieties of plants, from herbs to leafy greens and microgreens, making it ideal for culinary and educational purposes. Minimise food miles, reduce carbon footprints, and enjoy fresh, sustainable produce with a lower environmental impact.
FARM-FRESH PRODUCE
Cultivated Collection
Aeroponics
Cultivation
Customised
Lighting Strategy
Fully Integrated
HVAC
All-In-One
Solution
Advanced FIC
System
Multi-Platform
SaaS Control
Seamless, Closed-Loop Model,
from Cultivation to Sales
AESTHESTIC FINISHES
Seamless, Closed-Loop Model,
from Cultivation to Sales
ADVANCED DIGITAL CLIMATE
Air Dynamics
Precise climate control for temperature, humidity, and CO2, with warm/cool air options and a humidity range of 45%-98% at 25°C.
PHOTOIONISATION & STERILISATION
Purified Air
Prevents mold and pests, protecting crops and promoting plant health with sterilisation at 10^11 per m² for a clean, safe environment.
AUTO-DOSING & IRRIGATION
Auomated FIC
Enables flexible nutrient management with 4-tier, 4-channel dosing and real-time pH and EC adjustments, providing precise, programmable control across growth stages.
.png)
ADVANCED LIGHTING INNOVATIONS
Lighting
12
Harvest
Per Year
36
Days
Per Cycle
2,048
Planting
Cells
230 g
Ave. Weight Per Head
Lettuce
1,143 kg
Annum Yield
Lettuce
11.9 m²
Canopy
Area
TECHNICAL PARAMETRES
GENERAL
1. Equipment Dimensions: 1,490 x 687 x 2,190 mm
2. Shipping Dimensions: 1,580 x 770 x 2,360 mm
3. Door Type: Vertical Sliding
4. Growing Area: 1,349 x 645 mm x 4 tiers
5. Growing Height per Tier: 460 mm (280 mm Below Lighting)
6. Equipment Weight: Approximately 200 kg
ELECTRICITY
1. Power Consumption (Peak): 988 W
2. Input Voltage / Frequency: 220-240 V / 50 Hz
AIR
1. Operating Temperature Range: 0°C – 30°C
2. Temperature Control (@ 25°C): Up to 3°C Above Ambient (Non-Adjustable)
3. Air Circulation Capacity: 110 Air Exchanges per Hour
WATER
1. Nutrient Solution Management: Manual
2. Water Tank Capacity: 60 Litres
3. Water Temperature Range: 18°C – 23°C (Non-Adjustable)
Seamless, Closed-Loop Model,
from Cultivation to Sales
ROOT HOLDERS
Tray for Microgreens
8- Cell Tray for Leafy Greens
32- Cell Tray for Propagation & Herbs
CASES
Application Scenes
FAQs

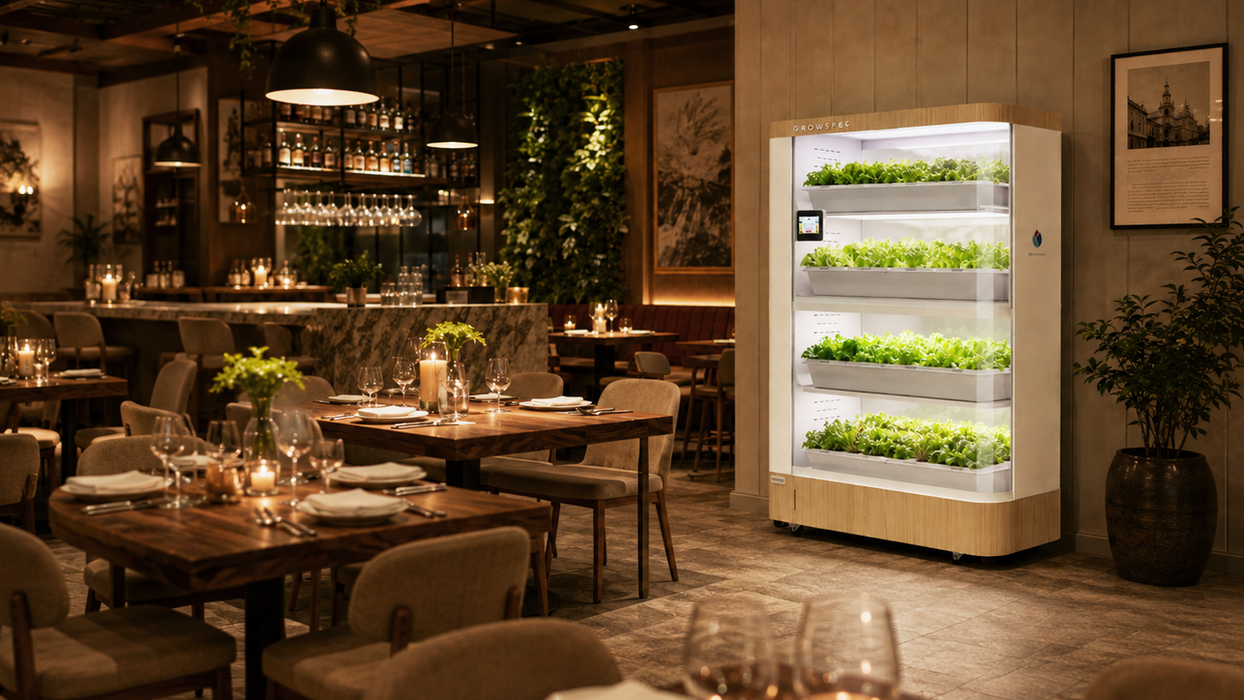

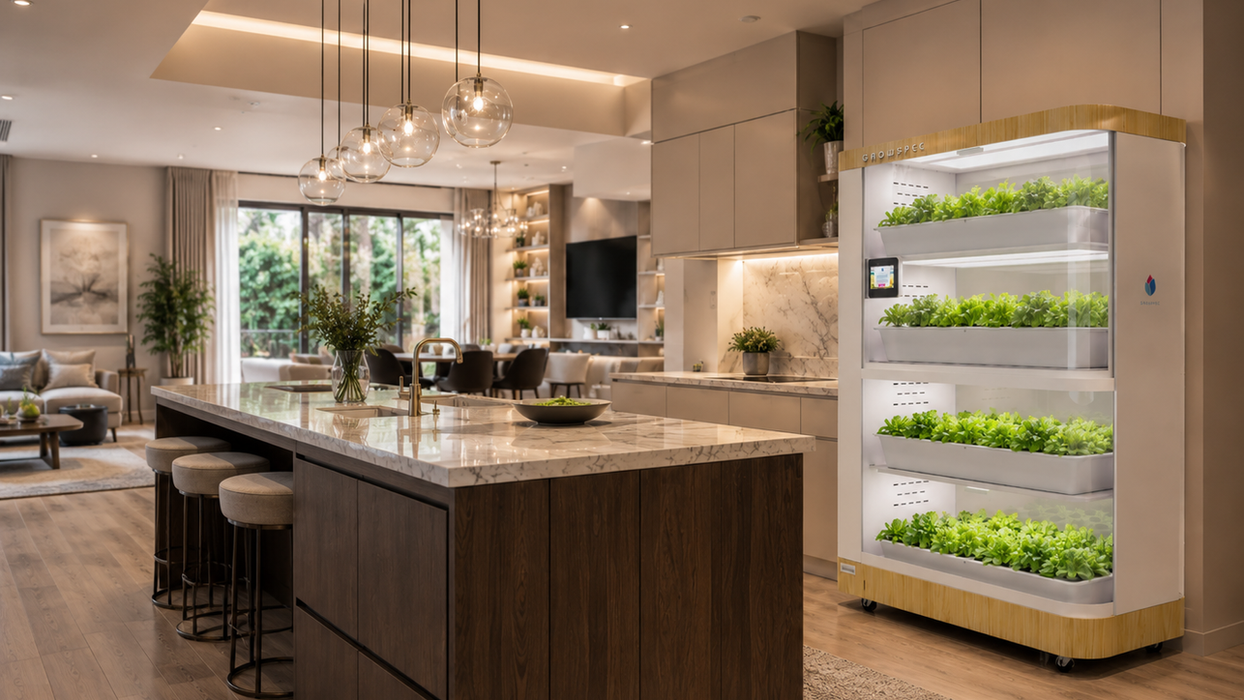

The FarmCube Nano is a compact, precision farming solution designed for home enthusiasts, dining establishments, and educational labs. With a 4.0m² canopy area and 128 planting sites, it’s perfect for growing herbs, leafy greens, and microgreens in small spaces. Its sleek, soil-free design makes it ideal for kitchens, restaurants, or classrooms.
The FarmCube Nano uses a closed-loop irrigation system that recirculates water and nutrients, reducing water usage by 95% compared to traditional farming methods. This makes it an eco-friendly choice for sustainable, pesticide-free produce.
The FarmCube Nano supports over 20 varieties of plants, including herbs (e.g., basil, dill), leafy greens (e.g., lettuce, arugula), and microgreens. It’s versatile enough for culinary use, home gardening, or educational purposes.
The FarmCube Nano is designed for plug-and-play simplicity. Its 7-inch touchscreen allows you to monitor and control key settings like lighting, temperature, and humidity effortlessly. Whether you’re a beginner or an experienced grower, the intuitive system ensures hassle-free operation.
With its compact dimensions (1,490 x 687 x 2,190 mm) and lightweight design, the FarmCube Nano fits seamlessly into small environments like kitchens, cafés, or labs. Its sleek aesthetic and no-soil setup make it both functional and visually appealing.
